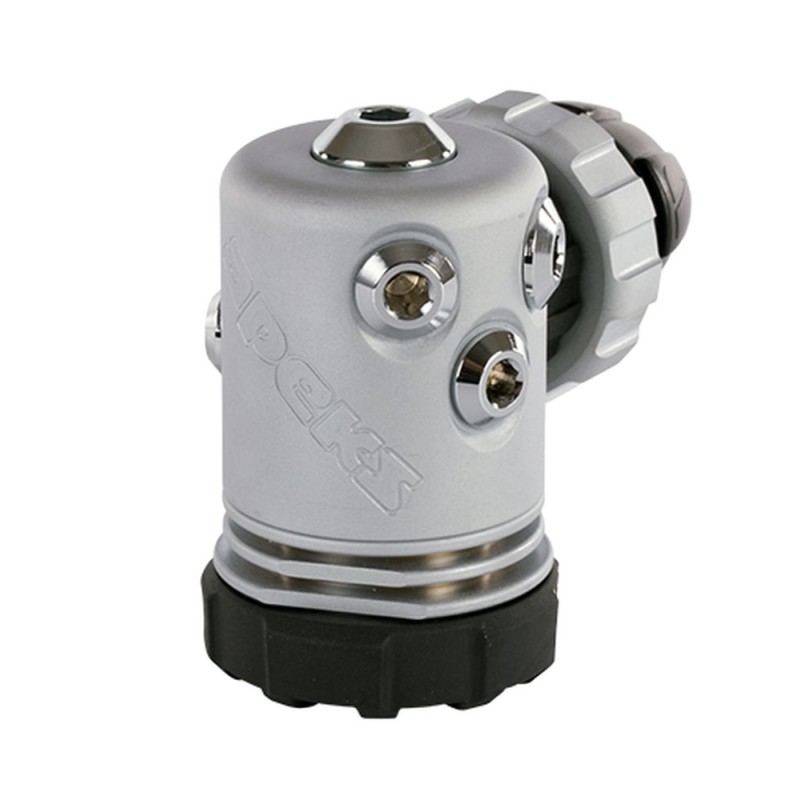

1st stage DB4

Combining the time-proven DS4 with MTX technology. The result is a compact, extremely durable 1st stage DB4. The robust dry-chamber seal with reinforced diaphragm helps prevent ice build up while protecting the controller from knocks. A heat exchanger around the membrane increases the temperature of the respiratory mixture inside the 1st stage. The classic shape is suitable for most configurations - single, twin, stage.

Properties

  • membrane balanced
  • closed with a dry chamber - reinforced membrane integrated in the shockproof housing
  • Massive heat exchanger around the dry chamber and main membrane
  • 4 x MP output 3/8 "UNF
  • 1 x HP 7/16 "UNF output
  • location of MP outputs: radial
  • material: brass
  • Finish: satin chrome
  • Weight: 630 g
  • DIN 300 bar, all metal fittings
  • EN250A
Product Details
DB4

Data sheet

Cold water
ano
Type 1.degree
Membrane
Balanced
ano
Number of HP outputs
1
Number of LP outputs
4
Travel version
ne
1st stage connection
DIN
Operating pressure
300 bar
LP output in the axis
ne
Regulation of inspiratory resistance
ne
