The basic Mark V/Orca system is available in 2,500 lb (1,200 kg) and 4,400 lb (2,000 kg) versions and includes:
One enclosed lifting bag made of urethane coating 40 oz.
nylon fabric for high abrasion and fuel resistance
two 80 ft3 or 100 ft3 or 87 ft3 fiber-wrapped aluminum cylinders
pressure relief valves
inflatable manifold with hoses
storage strap
release valve
surface control unit
hand and electric controls
carrying bag
solid storage/transportation box with handles
time delay actuator
pneumatic control
acoustic control
spare parts kit
kit tools
repair kit
four cylinder kit (allows greater operating depth)

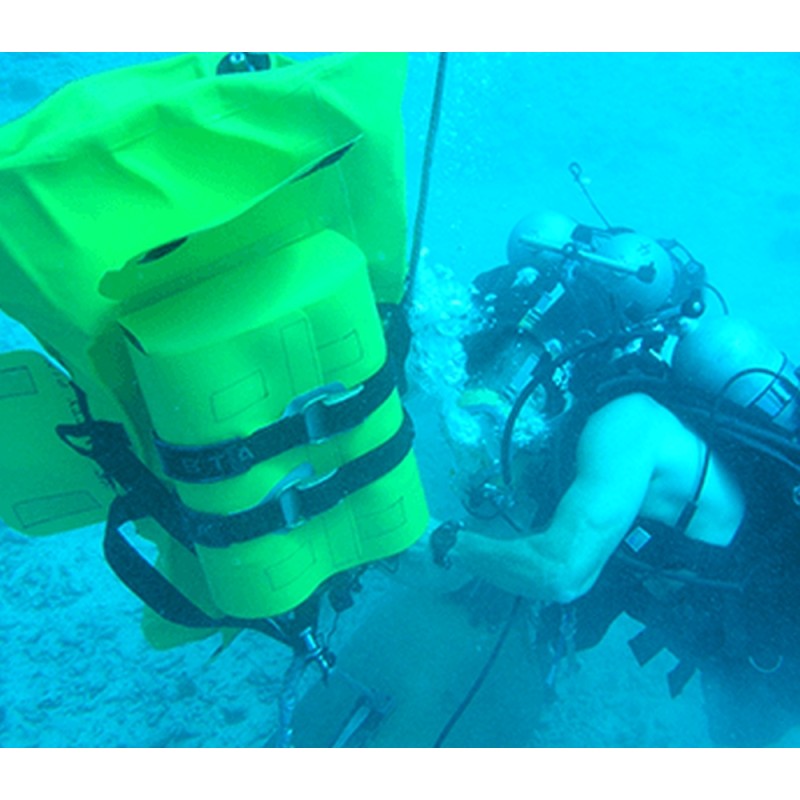

The system can be deployed by one diver from a remote location, for example, from an inflatable boat.It is designed to operate at full stroke capacity to a depth of 175 feet with a standard two-cylinder set and 330 feet with a four-cylinder set.
Equipped with all necessary hardware - ready for immediate use.
Subsalve products are made of durable urethane-coated nylon fabric. The nylon fabric has a breaking strength of over 1000 lbs. per inch and the urethane coating is resistant to fuels and most petrochemicals. MVO-1000 500kg 0.79m 1.07m .61m x .61m x .76m 43kg MVO-2500 1200kg 1.09m 1.55m .94m x .69m x .76m 66kg MVO-4000 2000kg 1.22m 1.88m 1.42m x .69m x .91m 89kg
Each Subsalve USA lifting bag is tested prior to shipment. Custom sizes available. All Subsalve USA products comply with IMCA D-016-AIRBAGS, ABS, U.S. Department of Defense Standards. The Mark V/Orca underwater explosive ordnance disposal system replaces the obsolete U.S. Navy Mark II Mod I flotation bladder (NSN #8465-00-992-6689), of which SUBSALVE has delivered more than 200 units over the past decade.The new Mark V/Orca system is approved by the U.S. Navy and used by more than 25 navies worldwide.
The Rapid Recovery System is a self-contained system that includes an enclosed commercial or professional lift bag with an air bottle pocket needed to fully inflate the lift bag to a depth of 100 feet.
From technical and wreck divers to public safety divers, this multi-purpose tool is used in many ways, including to recover items or as a dry bag to store and protect valuables or personal belongings.
Nothing temporarily closes a cavity or seals a hole better than an inflatable plug. Pipe plugs are highly durable, inflatable pipe plugs specifically designed for use in the construction, maintenance and repair of pipes, conduits and tunnels.
