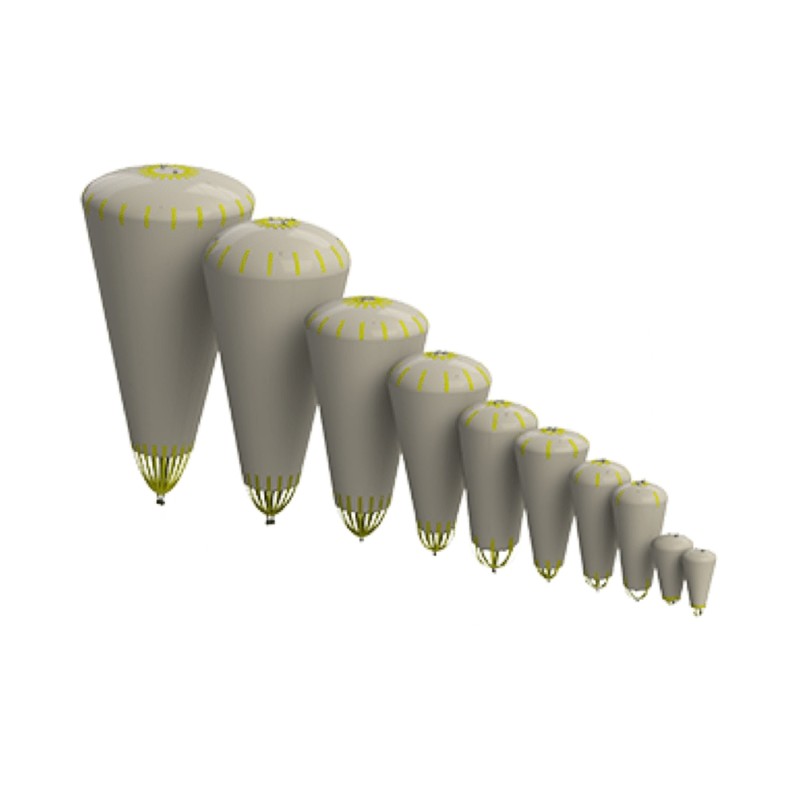

These versatile and easy-to-use closed-bottom parachute-shaped lifting bags with a single attachment point are indispensable in construction, heavy and light rescue work and many offshore tasks.
Several nylon lifting straps sewn directly to the bottom of the lifting bag, which carries the loadand ensures a safe working ratio of 6:1.Equipped with a 3/4” NPT port for inflation with quick disconnect or cam lock and a 3/4” stainless steel ball valve for quick deflation.
2 tons and up
Designed with replaceable lifting harness made of heavy duty nylon webbing molded into the bag shell to carry the load and provide a safe 6:1 working ratio.Equipped with 3/4” NPT port for inflation with quick disconnect or cam lock and 3/4” stainless steel ball valve for fast deflation.
The "inverted water droplet" design allows for maximum lifting power with the least amount of water.With even tension distribution across the fabric surface.Pre-blowing capability when needed.Does not release air if the bag breaks the water level.Pressure relief valves at the bottom of the bag prevent over pressurization of the lifting bagEquipped with all necessary hardware and ready for immediate use.
PFE-1000 500kg 0.90m 1.44m .46m x .33m x .26m 7.7kg PFE-2000 1000kg 1.13m 1.62m .51m x .38m x .29m 13.6kg PFE-4000 2000kg 1.38m 2.41m .61m x .61mm 22.7kg PFE-6000 3000kg 1.56m 2.77m 1.04m x .21m 36.3kg PFE-10000 4600kg 1.83m 2.95m 1.04m x 1.04m x .25m 47kg PFE-12000 5500kg 1.78m 3.33m 1.04m x 1.04m x .31m 56.7kg PFE-20000 10000kg 2.38m 4.10m 1.04m x 1.23m x .46m 86.2kg PFE-40000 20000kg 3.07m 6.16m 1.04m x 1.23m x .62m 147.7kg PFE-70000 35000kg 3.69m 6.77m 1.04m x 1.23m x .97m 186.9kg PFE-100000 48500kg 4.22m 8.03m 1.02m x 1.27m x 1.37m 238kg
Each Subsalve USA lifting bag is tested prior to shipment.Custom sizes are available.All Subsalve USA products comply with IMCA D-016-AIRBAGS, ABS, and U.S. Department of Defense standards.
Subsalve USA has produced a 5-ton Deep Ocean Lift Bag that has unprecedented strength, low elasticity and excellent resistance to abrasion and chemical attack. It has become the standard design for the Professional Lift Bag.
The Buoyancy Control System with Acoustic/Time Control (BCS-ATA) is the first easy-to-use buoyancy control system that allows active control of payload buoyancy (net positive or negative) to meet mission objectives.
From technical and wreck divers to public safety divers, this multi-purpose tool is used in many ways, including to recover items or as a dry bag to store and protect valuables or personal belongings.
