Reference: ZVEDACIVAK50
Lift Bag 50 kg, Sopras sub
Lift Bag 50 kg
are made of high tenacity urethane coated nylon fabric for high strength over 1000 pounds per inch and the urethane coating is resistant to fuel and most other petrochemicals.

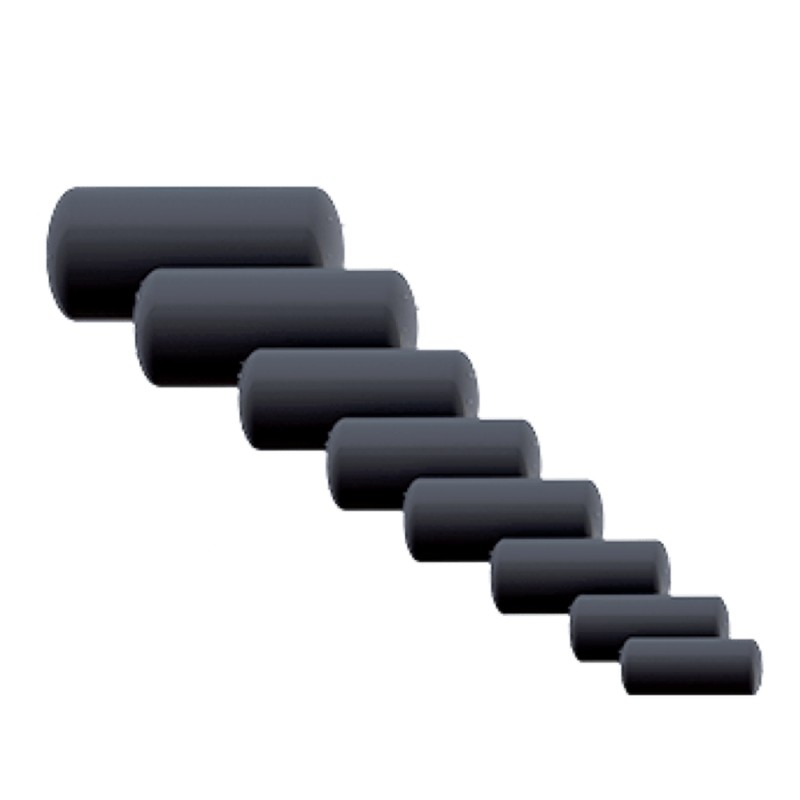

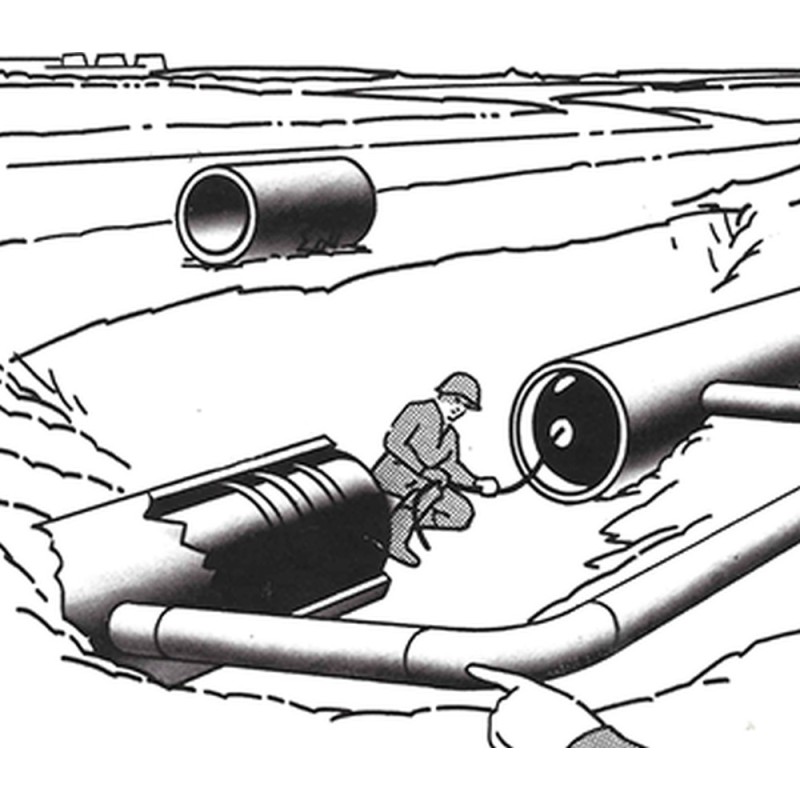

Each PIPE PLUGGER is equipped with fasteners, 1/4” to 3/4” inflatable ports, and pressure relief valves to prevent blowouts.
PIPELINE PLUGGERS are also available with by-pass design. Stock sizes are available from 12” to 96” diameter.
Custom sizes, shapes and configurations can be designed and manufactured to meet special needs.

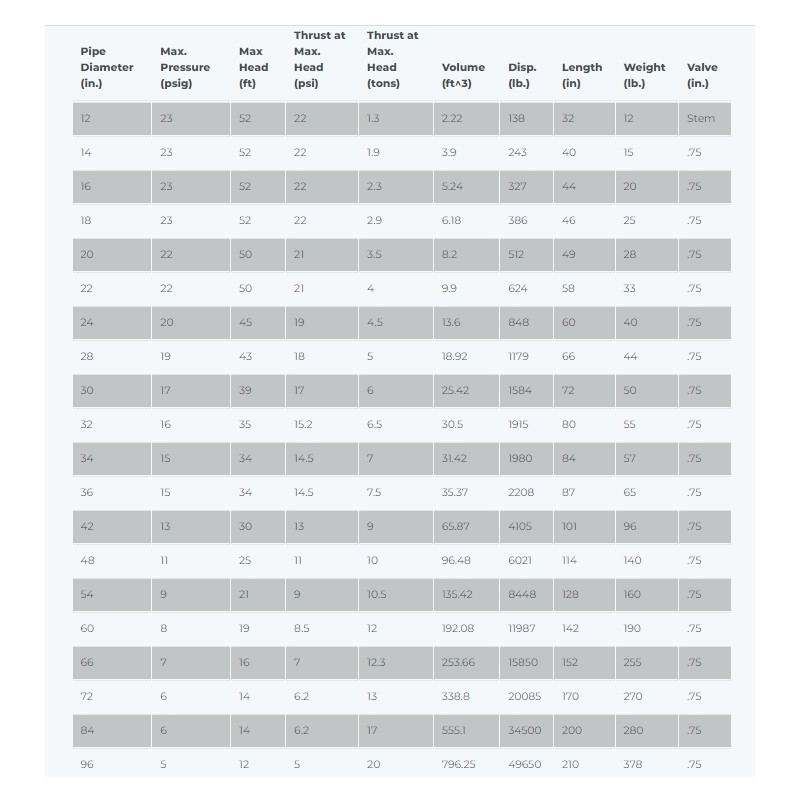

Pipe Diameter (in.) Max. Pressure (psig) Max Head (ft) Thrust at Max. Head (psi) Thrust at Max. Head (tons) Volume (ft^3) Disp. (lb.) Length (in) Weight (lb.) Valve (in.) 12 23 52 22 1.3 2.22 138 32 12 Stem 14 23 52 22 1.9 3.9 243 40 15 .75 16 23 52 22 2.3 5.24 327 44 20 .75 18 23 52 22 2.9 6.18 386 46 25 .75 20 22 50 21 3.5 8.2 512 49 28 .75 22 22 50 21 4 9.9 624 58 33 .75 24 20 45 19 4.5 13.6 848 60 40 .75 28 19 43 18 5 18.92 1179 66 44 .75 30 17 39 17 6 25.42 1584 72 50 .75 32 16 35 15.2 6.5 30.5 1915 80 55 .75 34 15 34 14.5 7 31.42 1980 84 57 .75 36 15 34 14.5 7.5 35.37 2208 87 65 .75 42 13 30 13 9 65.87 4105 101 96 .75 48 11 25 11 10 96.48 6021 114 140 .75 54 9 21 9 10.5 135.42 8448 128 160 .75 60 8 19 8.5 12 192.08 11987 142 190 .75 66 7 16 7 12.3 253.66 15850 152 255 .75 72 6 14 6.2 13 338.8 20085 170 270 .75 84 6 14 6.2 17 555.1 34500 200 280 .75 96 5 12 5 20 796.25 49650 210 378 .75Each Subsalve USA lifting bag is tested prior to shipment.Custom sizes are available.All Subsalve USA products are in compliance with IMCA D-016-AIRBAGS, ABS and U.S. Department of Defense standards.
Reference: ZVEDACIVAK1000VENT
Brand: SOPRASSUB
Lift Bag 1000 kg with valve, Sopras sub
Reference: ZVEDACIVAK200VENT
Brand: SOPRASSUB
Lift Bag 200 kg with valve
Reference: CABLEANDPIPELINEFLOATS_100KG
Brand: SUBSALVE
Subsalve cable and pipe floats provide benefits for economical and efficient installation of underwater cables and pipes.
Reference: SALVAGEPONTOONSVERTICAL_1000KG
Brand: SUBSALVE
The bags are ideal for rescue in shallow water, reducing the draft of a vessel or lifting an object closer to the surface.These bags feature a single lower and upper pick-up point with an internal strap that allows the load to be lifted from the top of the bag.
Reference: ENCLOSEDFLOTATIONBAGS
Brand: SUBSALVE
For floating objects near the surface.
Reference: ZVEDACIVAK500VENTDOUBLE
Brand: SOPRASSUB
Lift bag 500 kg with 2 valves
Reference: RAPIDRECOVERYSYSTEM_1000KG
Brand: SUBSALVE
The Rapid Recovery System is a self-contained system that includes an enclosed commercial or professional lift bag with an air bottle pocket needed to fully inflate the lift bag to a depth of 100 feet.
Reference: ZVEDACIVAK1500VENT
Brand: SOPRASSUB
Lift bag 1500 kg with valve, Sopras sub
Reference: PROFESSIONALLIFTBAGS_10000KG
Brand: SUBSALVE
Subsalve USA has produced a 5-ton Deep Ocean Lift Bag that has unprecedented strength, low elasticity and excellent resistance to abrasion and chemical attack. It has become the standard design for the Professional Lift Bag.
