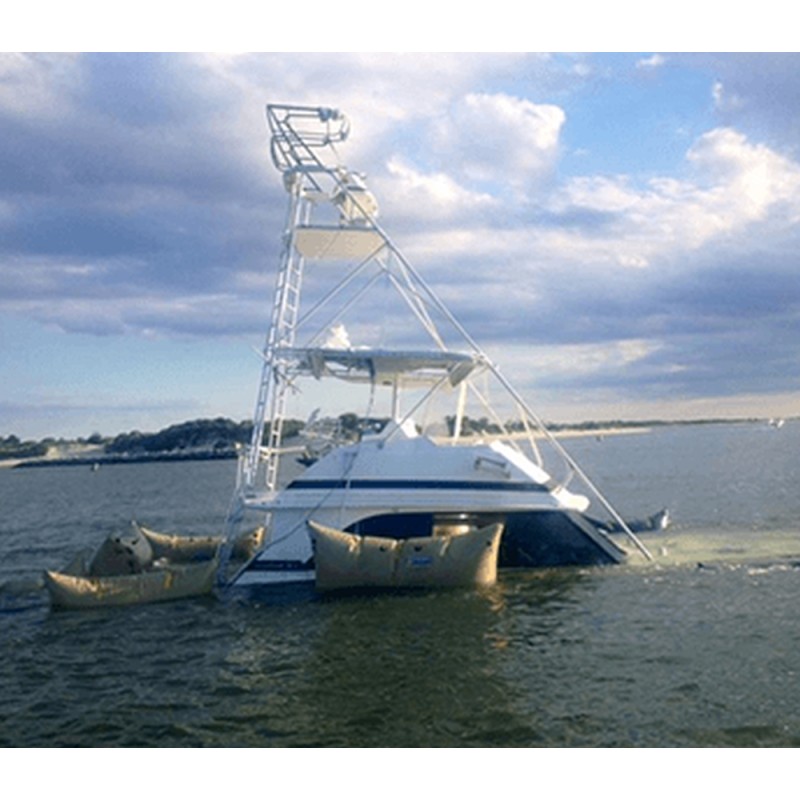

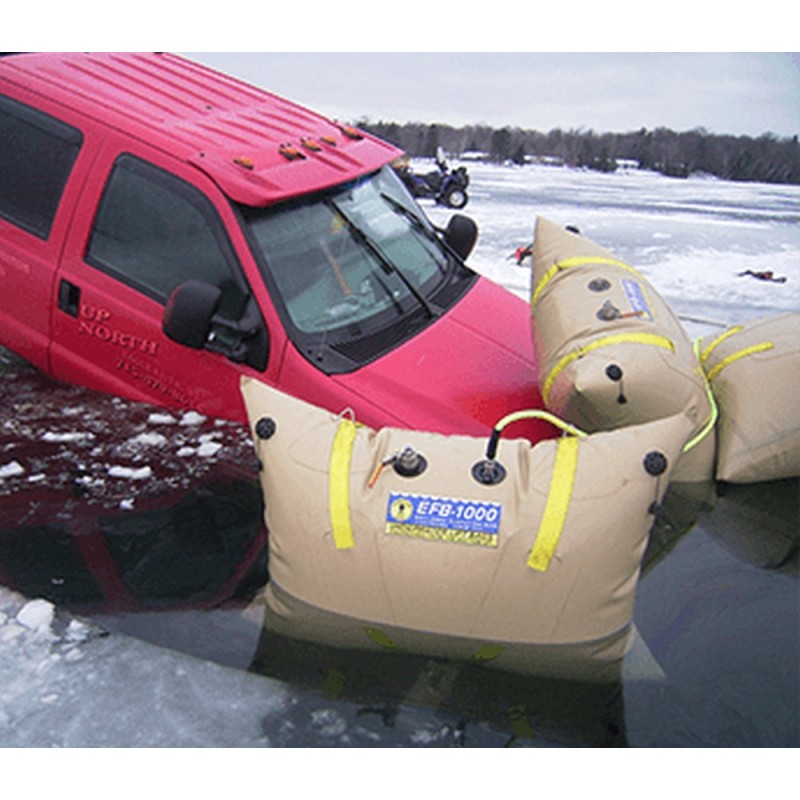

For floating the object on the surface, we recommend the use of Subsalve's closed pillow-shaped flotation bags. They are usable in any position - on the plane, on the side or inside the structure - for vessel rescue, automatic salvage, installation of pipes and cables and emergency floating of ships, aircraft, submarines, etc.
Urethane coated nylon is highly strong and durable
excellent abrasion resistance
resistance to most petrochemicals
UV resistant
low maintenance and easy to clean
RF welded seams
equipped with all necessary hardware - ready for immediate use
3/4” NPT inflation/discharge port equipped with ball valve
stainless steel quick coupler for inflation
pressure relief valves are set to release at 2,5 psi above ambient pressure
sufficient pressure relief valves are installed in each bag to allow expansion into the vent in the event of a free discharge
nylon lifting harness is built into the body of the lifting bag
safe working ratio 6:1
EFB-200 100kg .74m 0.97m .38m x .28m x .18m 5.4kg 1 bottom EFB-500 250kg .82m 1.31m .44m x .31m x .21m 9.1kg 2 top/1 bottom EFB-1000 500kg 1.13m 1.31m .46m x .33m x .26m 14.5kg 2 top/1 bottom EFB-2000 1000kg 1.41m 1.54m .51m x .38m x .24m 22.7kg 2 top/1 bottom EFB-4000 2000kg 1.77m 1.92m .56m x .38m x .33m 31.7kg 2 top/1 bottom EFB-6000 3000kg 1.94m 2.87m .57m x .45m x .33m 40.8kg 3 top/1 bottom
Each Subsalve USA lifting bag is tested prior to shipment.Custom sizes are available.All Subsalve USA products comply with IMCA D-016-AIRBAGS, ABS, and U.S. Department of Defense standards.
The Rapid Recovery System is a self-contained system that includes an enclosed commercial or professional lift bag with an air bottle pocket needed to fully inflate the lift bag to a depth of 100 feet.
The Buoyancy Control System with Acoustic/Time Control (BCS-ATA) is the first easy-to-use buoyancy control system that allows active control of payload buoyancy (net positive or negative) to meet mission objectives.
The bags are ideal for rescue in shallow water, reducing the draft of a vessel or lifting an object closer to the surface.These bags feature a single lower and upper pick-up point with an internal strap that allows the load to be lifted from the top of the bag.
Subsalve USA has produced a 5-ton Deep Ocean Lift Bag that has unprecedented strength, low elasticity and excellent resistance to abrasion and chemical attack. It has become the standard design for the Professional Lift Bag.
