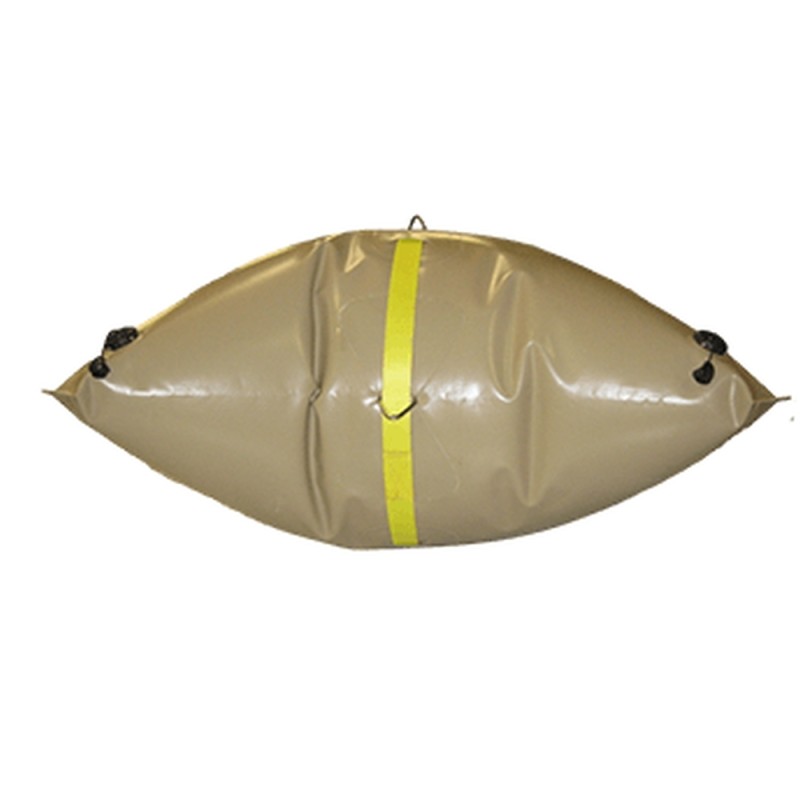

If you need to float an object in extremely shallow water - use the closed cushion-shaped shallow water buoyancy bags.
configuration with many combinations of equipment

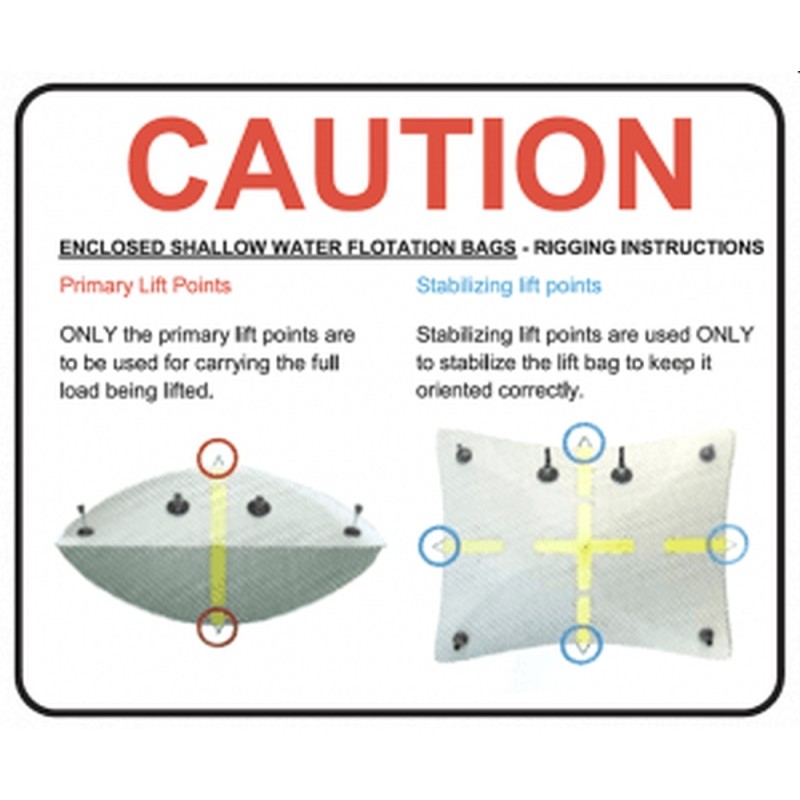

for use with one or more attachment points around the perimeter of the bag
urethane coated nylon - highly strong and durable
excellent abrasion resistance
resistance to most petrochemicals
UV resistant
low maintenance requirements and easy cleaning
RF welded seams
heavy duty nylon lifting harness built into the body of the lifting bag
safe working ratio 6:1
equipped with all necessary hardware - ready for immediate use
3/4” NPT inflation/discharge port equipped with ball valve
stainless steel quick coupler for inflation
pressure relief valves: set to release at 2.5 psi above ambient pressure
enough pressure relief valves are installed in each bag to allow expansion into the vent in the event of a free outlet.

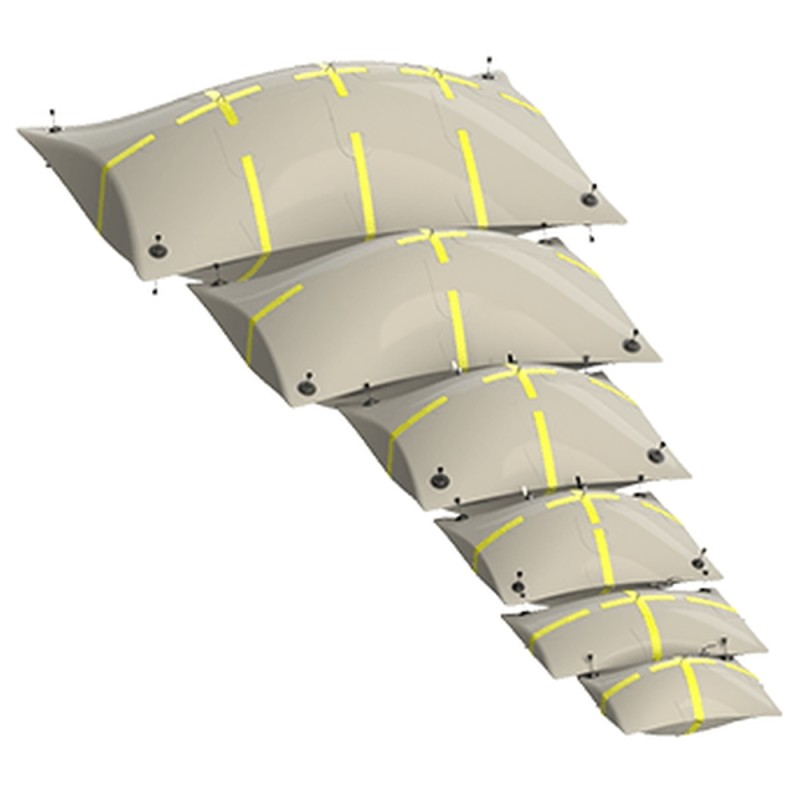

EFB-200-SW 100kg .74m 0.97m .38m x .28m x .18m 5.4kg EFB-500-SW 250kg .82m 1.31m .44m x .31m x .21m 9.1kg EFB-1000-SW 500kg 1.13m 1.31m .46m x .33m x .26m 14.5kg EFB-2000-SW 1000kg 1.41m 1.52m .51m x .38m x .24m 22.7kg EFB-4000-SW 2000kg 1.77m 1.92m .56m x .38m x .33m 31.7kg EFB-6000-SW3000kg1.94m2.84m.57m x .45m x .33m40.8kg Each Subsalve USA lifting bag is tested prior to shipment.Custom sizes are available. All Subsalve USA products comply with IMCA D-016-AIRBAGS, ABS, U.S. Department of Defense Standards.
The bags are ideal for rescue in shallow water, reducing the draft of a vessel or lifting an object closer to the surface.These bags feature a single lower and upper pick-up point with an internal strap that allows the load to be lifted from the top of the bag.
The Rapid Recovery System is a self-contained system that includes an enclosed commercial or professional lift bag with an air bottle pocket needed to fully inflate the lift bag to a depth of 100 feet.
Fully enclosed cylindrical bags are ideal for rescue in shallow waters, reducing the draft of a vessel or lifting an object closer to the surface. They are invaluable when working with cables and pipes and where long tows are planned.
